G500 Series

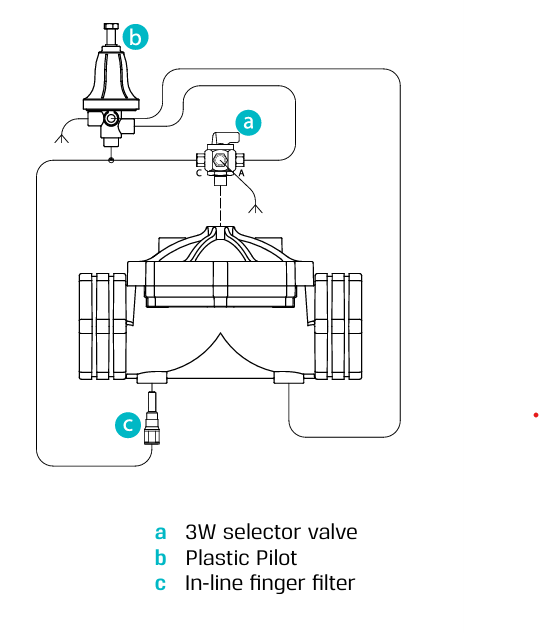

G500-PR model pressure reducing control valve is the hydraulic control valve which reduces high upstream pressure value to desired lower pressure value by means of built-in pressure reducing pilot valve Pressure reducing control valve controls downstream pressure value continuously and maintains it constant without being affected from flow rate and upstream pressure values When no flow exists in the system, it closes itself automatically When valve upstream pressure value is lower than set point, it is opened fully by itself Valve may be used in vertical or horizontal positions in the system.
Description
Product Specifications
G500-S model valve is the hydraulic control valve operated by line pressure and designed to ensure opening/closing process by means of a 3 Way selector valve Minimum opening pressure of valve is 0.7 bar Thanks to its flexible diaphragm, it makes easy and fast control process in high pressure applications and is closed completely tight without causing surge It may be used in different applications by adding different pilot valves on its main body
Applications
- Use G500-S for local operation of hydraulic valve by a manual command
- Use G500-S for water distribution and field
Standards
- G500-S : manual control valve with 3 Way selector valve, polyethylene plastic tubing and nylon fittings
| Size | 1 1⁄2”, 2″, 2 1⁄2”, 3″, 4″ |
| Function | 2 Way Normally Closed |
| Valve Operation | Hydraulic |
| Body Material | Plastic |
| Seal | NR |
| Pressure Range | 0.7 bar |
| Media | Air, water |
